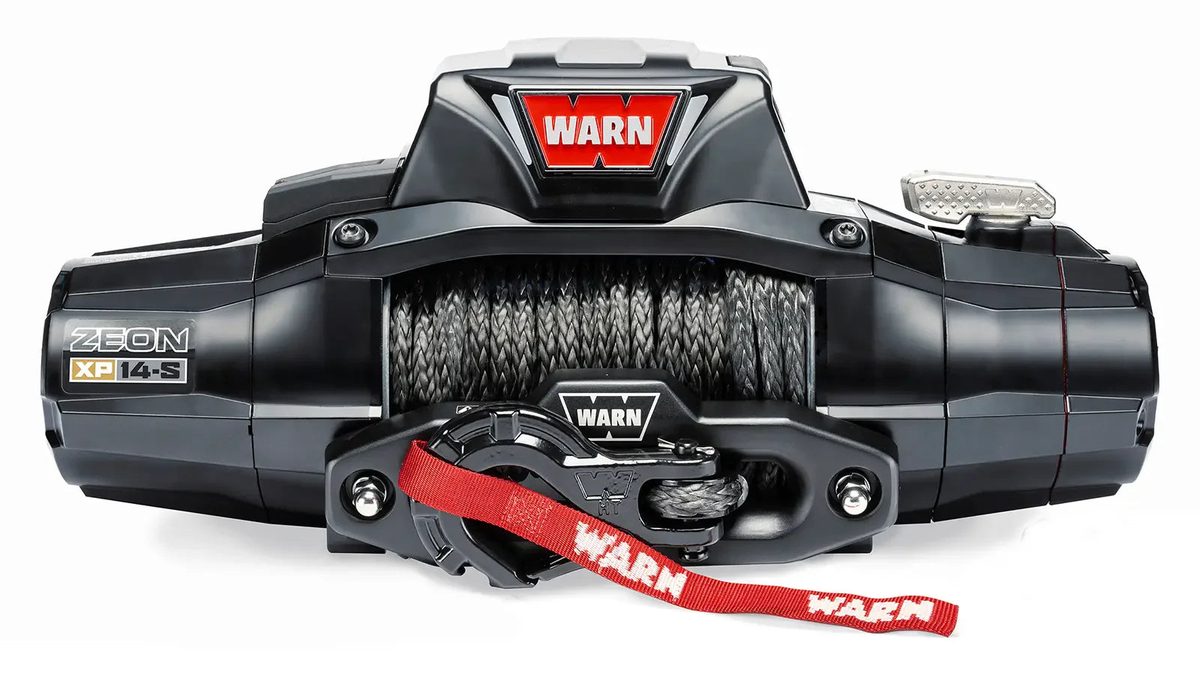

Warn ZEON XP 14-S Winch - 110140

The WARN ZEON XP 14-S Winch (Part Number 110140) is a premium 14,000 lb electric recovery winch engineered for extreme off-road, overland, and heavy-duty recovery applications. It represents the highest-performance tier in the ZEON XP lineup, designed for maximum strength, speed, and durability under the most demanding conditions.

Built and assembled in Clackamas, Oregon, USA, the ZEON XP 14-S features advanced waterproof sealing, a high-output 12V DC motor, and a heavy-duty 3-stage planetary geartrain. It delivers fast line speed, improved efficiency, and reliable pulling performance even under maximum load conditions.

This winch comes equipped with 80 feet of 3/8" Spydura Pro synthetic rope, a forged aluminum hawse fairlead, and a premium recovery hook. With IP68 and IP69K waterproof ratings, it is fully sealed against water, dust, and extreme environmental exposure for long-term durability.

Product Features

• Rated Line Pull: 14,000 lb maximum recovery capacity.
• Motor: High-performance 12V DC series wound motor for maximum torque output.
• Geartrain: 3-stage planetary gear system for smooth and efficient power delivery.
• Gear Ratio: 213:1 optimized for heavy-duty pulling strength.
• Line Speed: High-speed recovery performance for improved efficiency under load.
• Rope: 80 ft of 3/8" Spydura Pro synthetic rope with abrasion protection.
• Fairlead: Forged aluminum hawse fairlead for synthetic rope compatibility.
• Hook: Premium WARN Epic recovery hook for secure attachment.
• Brake System: Automatic cone brake for controlled load holding.
• Waterproof Rating: IP68 submersion and IP69K high-pressure spray protection.
• Construction: Full metal armor housing for maximum impact and debris protection.
• Corrosion Resistance: OE-grade coating and stainless hardware for long-term durability.
• Control System: Wired remote with integrated HUB wireless receiver compatibility.

Product Specification

Specification	Details	Specification	Details
Part Number	110140	Rated Line Pull	14,000 lb (6350 kg)
Voltage	12V DC	Motor Type	Series Wound
Geartrain	3-Stage Planetary	Gear Ratio	213:1
Rope Length	80 ft (24.4 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Pro Synthetic Rope	Fairlead Type	Forged Aluminum Hawse
Hook Type	WARN Epic Recovery Hook	Brake Type	Automatic Cone Brake
Control Type	Wired Remote / HUB Wireless Receiver Compatible	Free Spool	Yes
Power In/Out	Yes	Duty Cycle	Intermittent
Mount Type	Standard 4-Bolt Mount	Mounting Bolt Pattern	10 in x 4.5 in
Dimensions (L x W x H)	23.9 in x 7.1 in x 10.5 in	Weight	Approx. 90–105 lbs
Waterproof Rating	IP68 / IP69K	Construction	Full Metal Armor Housing
Corrosion Protection	OE-grade coated components	Country of Manufacture	USA (Clackamas, Oregon)
Warranty	Limited Lifetime Mechanical / 7-Year Electrical	Recommended Use	Off-Road / Recovery / Overland / Heavy Truck

INSTALLATION GUIDE

ZEON XP - Installation Guide

ZEON XP - Service Manual

Operation Guide

Product Line Up

The ZEON XP lineup is WARN’s premium flagship recovery winch series, designed for 10,000 lb to 14,000 lb applications. The XP 14-S represents the top-tier configuration, offering the fastest line speed, advanced waterproofing, HUB wireless integration, and premium accessory upgrades compared to XD and XC models.
