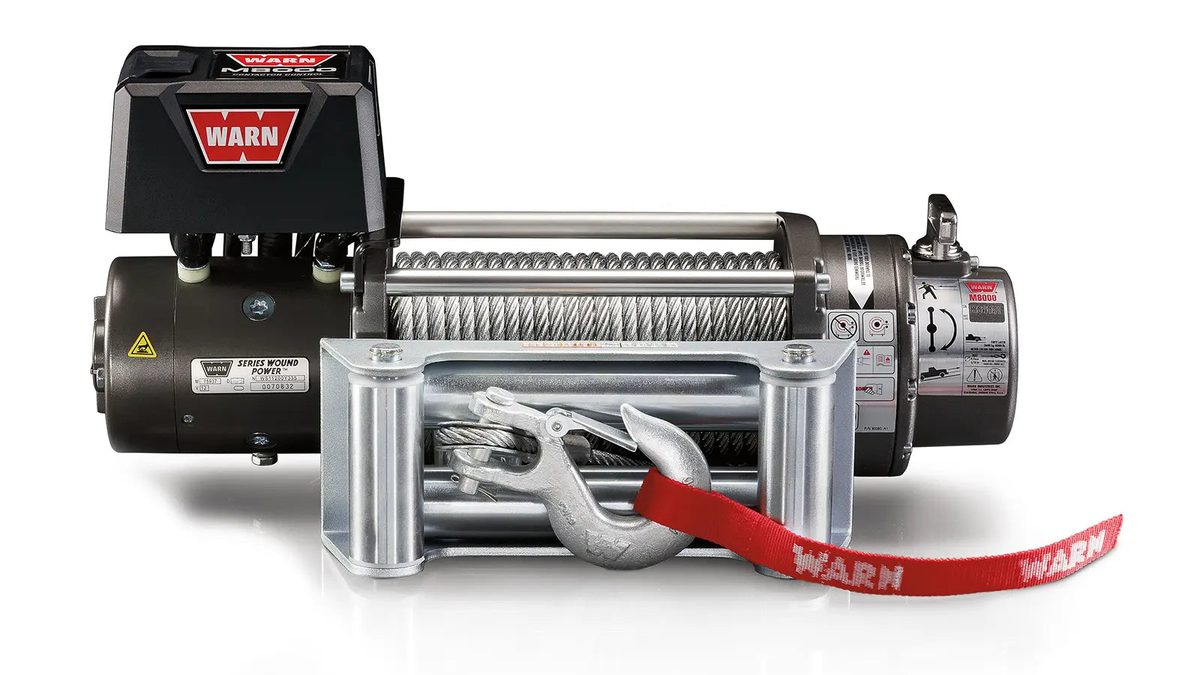

Warn M8 Winch - 26502

Excellent for smaller SUVs, pickups, and classic rigs, the M8 has an 8,000 lb. pulling capacity in an efficient, compact shape. Long popular with off-roaders around the world, its low-profile fits into tighter spaces, and provides excellent line speed. Plus it's designed, engineered, and assembled in the USA.

From the endless mud in Malaysia to deep sand in the Australian Outback, our rugged specialty winches have a well-earned reputation for getting it done in the trenches, on the trails and in the toughest competitions throughout the off-road world, one fast line pull at a time.

Product Features

• Includes 100' of rugged 5/16" steel rope and a roller fairlead
• An excellent combination of fast line speeds, power, and proven reliability
• Control pack can be relocated for low-profile installations
• Automatic cone brake holds the winch's full rated load
• Low profile, compact shape fits into smaller spaces often found on classic 4WD vehicles
• Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)


Product Specification

Specification	Details	Specification	Details
Cable Length	100 FT	Cable Material	Metal Rope
Motor Voltage	12V	Mount Type	Fixed Mount
Rated Line Pull	8000 LB	Requires Mount	Yes

INSTALLATION GUIDE

Installation Guide

Synthetic Rope Install & Operators Guide

Winch Operators Manual
