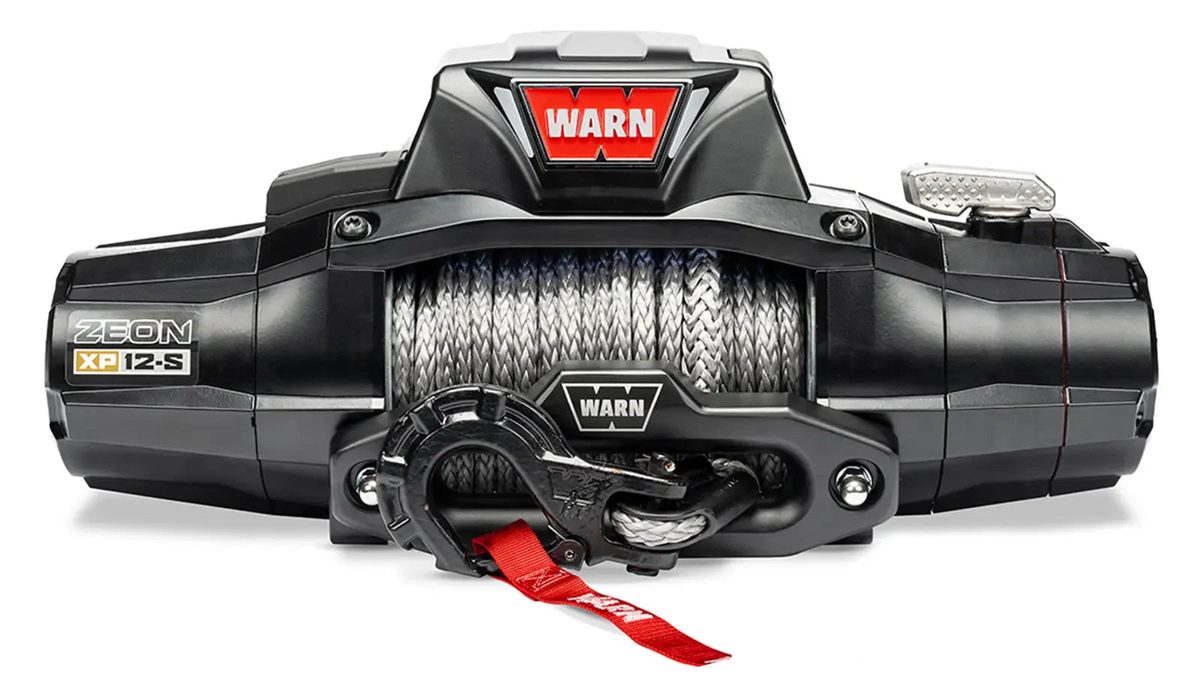

Warn ZEON XP 12-S Winch - 110120

The WARN ZEON XP 12-S Winch (Part Number 110120) is a premium 12,000 lb electric recovery winch engineered for demanding off-road, overland, and heavy-duty recovery applications. It is part of WARN’s next-generation ZEON XP platform, designed for improved speed, smarter control systems, and enhanced durability in extreme environments.

Built and assembled in Clackamas, Oregon, USA, the ZEON XP 12-S features a high-output 12V DC motor, advanced planetary geartrain, and fully sealed waterproof construction. It delivers fast line speed, improved load handling efficiency, and reliable performance under continuous recovery conditions.

This model includes 80 feet of 3/8" Spydura synthetic rope, a forged aluminum hawse fairlead, and integrated smart control technology. With IP68 and IP69K waterproof ratings, it is designed to withstand water, mud, dust, and harsh weather exposure without performance loss.

Product Features

• Rated Line Pull: 12,000 lb recovery capacity for heavy-duty applications.
• Motor: High-performance 12V DC series wound motor for strong and consistent torque output.
• Geartrain: 3-stage planetary gear system for smooth and efficient power delivery.
• Gear Ratio: 144:1 optimized for balanced speed and pulling power.
• Line Speed: High-efficiency recovery speed with improved load handling.
• Rope: 80 ft of 3/8" Spydura synthetic rope with abrasion-resistant sleeve.
• Fairlead: Forged aluminum hawse fairlead for synthetic rope compatibility.
• Brake System: Automatic cone brake for controlled and secure load holding.
• Waterproof Rating: IP68 submersion and IP69K high-pressure wash protection.
• Construction: Full metal armor housing for maximum durability and impact resistance.
• Corrosion Resistance: OE-grade coatings and stainless hardware for long-term protection.
• Control System: Wired remote with integrated HUB wireless + smart control system compatibility.

Product Specification

Specification	Details	Specification	Details
Part Number	110120	Rated Line Pull	12,000 lb (5443 kg)
Voltage	12V DC	Motor Type	Series Wound
Geartrain	3-Stage Planetary	Gear Ratio	144:1
Rope Length	80 ft (24.4 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Synthetic Rope	Fairlead Type	Forged Aluminum Hawse
Brake Type	Automatic Cone Brake	Solenoid Type	Albright Contactor
Control Type	Wired Remote / HUB Smart Wireless Control	Free Spool	Yes
Power In/Out	Yes	Duty Cycle	Intermittent
Mount Type	Standard 4-Bolt Mount	Mounting Bolt Pattern	10 in x 4.5 in
Dimensions (L x W x H)	23.9 in x 7.1 in x 10.5 in	Weight	Approx. 85–95 lbs
Waterproof Rating	IP68 / IP69K	Construction	Full Metal Armor Housing
Corrosion Protection	OE-grade coated components	Country of Manufacture	USA (Clackamas, Oregon)
Warranty	Limited Lifetime Mechanical / 7-Year Electrical	Recommended Use	Off-Road / Recovery / Overland / Heavy Truck

INSTALLATION GUIDE

ZEON XP - Installation Guide

ZEON XP - Service Manual

Operation Guide

Product Line Up

The ZEON XP lineup is WARN’s most advanced winch series, designed for 10,000 lb to 14,000 lb applications. The XP 12-S sits in the middle of the XP range, offering a balance of high pulling power, smart control integration, and improved line speed compared to XD and XC models.
