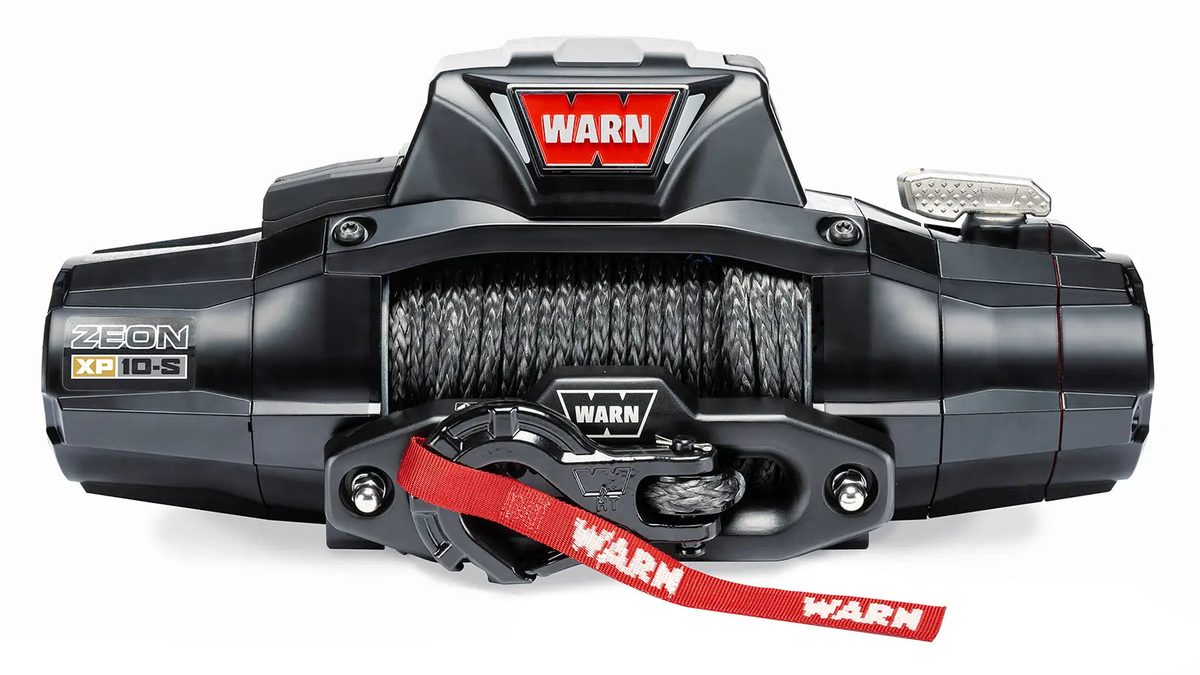

Warn ZEON XP 10-S Winch - 110100

The WARN ZEON XP 10-S Winch (Part Number 110100) is a premium 10,000 lb electric recovery winch designed for fast, reliable, and high-performance recovery operations. It is part of WARN’s ZEON XP lineup, engineered for improved control, faster line speed, and enhanced durability for off-road and overland applications.

Built and assembled in Clackamas, Oregon, USA, the ZEON XP 10-S features a high-output 12V DC series wound motor, advanced 3-stage planetary geartrain, and fully sealed waterproof construction. It is designed to deliver best-in-class performance with consistent pulling power, efficient energy use, and superior control systems.

This winch includes 100 feet of 3/8" Spydura synthetic rope, a forged aluminum hawse fairlead, and a premium recovery hook. With IP68 and IP69K sealing, it is fully protected against water, dust, mud, and harsh environmental conditions.

Product Features

• Rated Line Pull: 10,000 lb recovery capacity for light to medium-duty applications.
• Motor: High-performance 12V DC series wound motor for strong torque output.
• Geartrain: 3-stage planetary gear system for smooth and efficient operation.
• Gear Ratio: 141:1 optimized for speed and pulling balance.
• Line Speed: Fast recovery performance with high no-load line speed up to ~40 ft/min.
• Rope: 100 ft of 3/8" Spydura synthetic rope with abrasion-resistant sleeve.
• Fairlead: Forged aluminum hawse fairlead for synthetic rope compatibility.
• Brake System: Automatic cone brake for controlled load holding.
• Waterproof Rating: IP68 submersion and IP69K high-pressure wash protection.
• Construction: Full metal armor housing for maximum durability and impact resistance.
• Corrosion Resistance: OE-grade coated hardware and fasteners for long-term durability.
• Control System: Wired remote with integrated HUB wireless receiver and smart control compatibility.

Product Specification

Specification	Details	Specification	Details
Part Number	110100	Rated Line Pull	10,000 lb (4536 kg)
Voltage	12V DC	Motor Type	Series Wound
Geartrain	3-Stage Planetary	Gear Ratio	141:1
Rope Length	100 ft (30 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Synthetic Rope	Fairlead Type	Forged Aluminum Hawse
Brake Type	Automatic Cone Brake	Solenoid Type	Albright Contactor
Control Type	Wired Remote / HUB Wireless Receiver Compatible	Free Spool	Yes
Power In/Out	Yes	Duty Cycle	Intermittent
Mount Type	Standard 4-Bolt Mount	Mounting Bolt Pattern	10 in x 4.5 in
Dimensions (L x W x H)	23.9 in x 7.1 in x 10.5 in	Weight	Approx. 70–85 lbs
Waterproof Rating	IP68 / IP69K	Construction	Full Metal Armor Housing
Corrosion Protection	OE-grade coated components	Country of Manufacture	USA (Clackamas, Oregon)
Warranty	Limited Lifetime Mechanical / 7-Year Electrical	Recommended Use	Off-Road / Recovery / Overland / Light Truck / SUV

INSTALLATION GUIDE

ZEON XP - Installation Guide

ZEON XP - Service Manual

Operation Guide

Product Line Up

The ZEON XP lineup is WARN’s most advanced winch series, designed for enhanced control, real-time feedback systems, and improved recovery performance. The XP 10-S is the entry model in the XP range, offering high-speed line recovery and advanced smart control integration.
