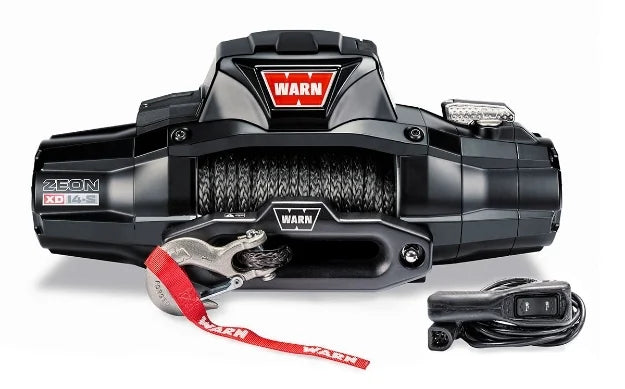

Warn ZEON XD 14-S Winch - 110014

The WARN ZEON XD 14-S Winch is a premium 14,000 lb electric recovery winch engineered for the most demanding off-road, overland, and heavy-duty recovery applications. It is the highest capacity model in the ZEON XD lineup, designed for maximum pulling power, speed, and long-term durability.

Built and assembled in Clackamas, Oregon, USA, the ZEON XD 14-S features advanced waterproof sealing, a high-output 12V motor, and a heavy-duty 3-stage planetary geartrain. It delivers class-leading line speed, improved efficiency, and superior reliability under extreme load conditions.

This winch comes equipped with 80 feet of 3/8" Spydura synthetic rope, a hawse fairlead, and a full metal armor housing for maximum protection. With IP68 and IP69K ratings, it is fully sealed against water, dust, and harsh environmental conditions.

Product Features

• Rated Line Pull: 14,000 lb maximum recovery capacity.
• Motor: High-performance 12V DC series wound motor for maximum torque output.
• Geartrain: 3-stage planetary gear system for smooth and efficient power transfer.
• Gear Ratio: 213:1 optimized for heavy-duty pulling strength.
• Line Speed: High-speed recovery performance with improved efficiency under load.
• Rope: 80 ft of 3/8" Spydura synthetic rope with abrasion-resistant sleeve.
• Fairlead: Hawse fairlead designed for synthetic rope compatibility.
• Brake System: Automatic cone brake for secure load holding and control.
• Waterproof Rating: IP68 and IP69K fully sealed construction.
• Construction: Full metal armor housing for maximum durability and impact resistance.
• Corrosion Resistance: OE-grade coatings and hardware for long-term protection.
• Control System: Wired remote with wireless HUB compatibility.

Product Specification

Specification	Details	Specification	Details
Part Number	110014	Rated Line Pull	14,000 lb (6350 kg)
Voltage	12V DC	Motor Type	Series Wound
Geartrain	3-Stage Planetary	Gear Ratio	213:1
Rope Length	80 ft (24.4 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Synthetic Rope	Fairlead Type	Hawse
Brake Type	Automatic Cone Brake	Solenoid Type	Albright Contactor
Control Type	Wired Remote / Wireless HUB Compatible	Free Spool	Yes
Power In/Out	Yes	Duty Cycle	Intermittent
Mount Type	Standard 4-Bolt Mount	Mounting Bolt Pattern	10 in x 4.5 in
Dimensions (L x W x H)	23.9 in x 7.1 in x 10.5 in	Weight	Approx. 90–105 lbs
Waterproof Rating	IP68 / IP69K	Construction	Full Metal Armor Housing
Corrosion Protection	OE-grade coated components	Country of Manufacture	USA (Clackamas, Oregon)
Warranty	Limited Lifetime Mechanical Warranty	Recommended Use	Off-Road / Recovery / Overland / Heavy Truck

INSTALLATION GUIDE

ZEON XD - Installation Guide

ZEON XD - Service Manual

Operation Guide

Product Line Up

The ZEON XD lineup is WARN’s premium heavy-duty winch family, designed for 10,000 lb to 14,000 lb recovery applications. It includes ZEON XD, ZEON XC, and ZEON XP variants, each offering different configurations, control systems, and mounting options while maintaining the same core durability, waterproofing, and performance standards.
