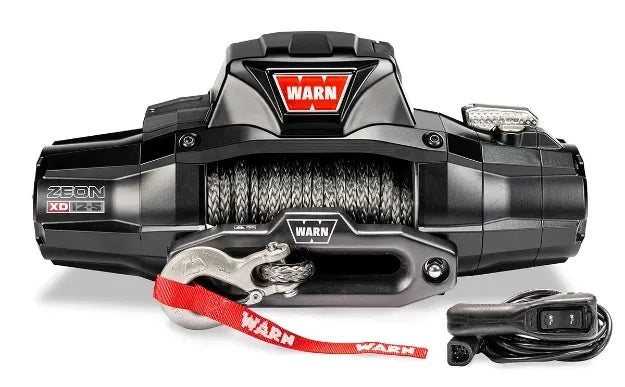

Warn ZEON XD 12-S Winch - 110012

The WARN ZEON XD 12-S Winch is a premium 12,000 lb electric recovery winch designed for extreme off-road, overland, and heavy-duty applications. It delivers maximum pulling power, speed, and durability for demanding recovery situations where reliability is critical.

Engineered and assembled in the USA, the ZEON XD 12-S combines advanced sealing technology, high-output motor performance, and a precision 3-stage planetary geartrain. It is built to withstand harsh environments including water, mud, dust, and extreme weather conditions.

This winch includes 80 feet of 3/8" Spydura synthetic rope, a hawse fairlead, and a full metal armor housing for enhanced protection. With IP68/IP69K waterproof ratings and a reinforced internal structure, it ensures dependable operation under heavy load and extreme conditions.

Product Features

• Rated Line Pull: 12,000 lb heavy-duty recovery capacity.
• Motor: High-output 12V DC series wound motor for strong torque delivery.
• Geartrain: 3-stage planetary gear system for smooth and efficient power transfer.
• Gear Ratio: 176:1 optimized for controlled pulling strength and durability.
• Line Speed: Fast no-load recovery speed for improved winching efficiency.
• Rope: 80 ft of 3/8" Spydura synthetic rope with abrasion-resistant sleeve.
• Fairlead: Hawse fairlead designed for synthetic rope compatibility.
• Brake System: Automatic cone brake for secure load holding and control.
• Waterproof Rating: IP68 and IP69K fully sealed construction.
• Construction: Full metal armor housing for maximum durability and impact resistance.
• Corrosion Resistance: OE-grade coatings and hardware for long-term protection.
• Control System: Wired remote with optional wireless HUB compatibility.

Product Specification

Specification	Details	Specification	Details
Part Number	110012	Rated Line Pull	12,000 lb (5443 kg)
Voltage	12V DC	Motor Type	Series Wound
Geartrain	3-Stage Planetary	Gear Ratio	176:1
Rope Length	80 ft (24.4 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Synthetic Rope	Fairlead Type	Hawse
Brake Type	Automatic Cone Brake	Solenoid Type	Albright Contactor
Control Type	Wired Remote / Wireless HUB Compatible	Free Spool	Yes
Power In/Out	Yes	Duty Cycle	Intermittent
Mount Type	Standard 4-Bolt Mount	Mounting Bolt Pattern	10 in x 4.5 in
Dimensions (L x W x H)	23.9 in x 7.1 in x 10.5 in	Weight	Approx. 90–100 lbs
Waterproof Rating	IP68 / IP69K	Construction	Full Metal Armor Housing
Corrosion Protection	OE-grade coated components	Country of Manufacture	USA (Clackamas, Oregon)
Warranty	Limited Lifetime Mechanical Warranty	Recommended Use	Off-Road / Recovery / Overland / Heavy Truck

INSTALLATION GUIDE

ZEON XD - Installation Guide

ZEON XD - Service Manual

Operation Guide

ZEON XD WINCH LINEUP

The ZEON XD lineup is WARN’s premium recovery winch family, designed for 10,000 lb to 14,000 lb applications. It includes ZEON XD, ZEON XC, and ZEON XP variants, each offering different configurations, control systems, and mounting setups while maintaining the same core durability and performance standards.
