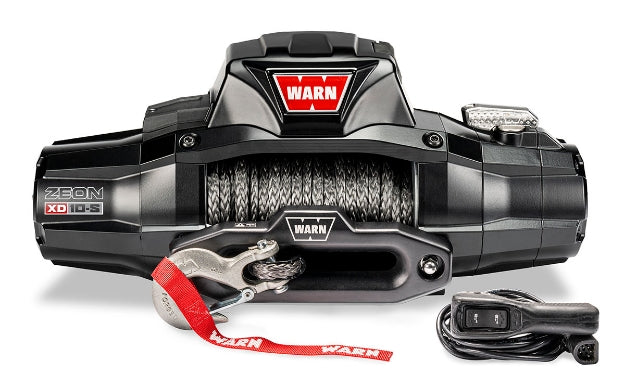

Warn ZEON XD 10-S Winch - 110010

The WARN ZEON XD 10-S Winch is a premium 10,000 lb electric recovery winch designed for off-road, overland, and light-to-medium duty truck applications. It is built for users who demand reliability, fast line speed, and long-term durability in extreme recovery situations.

Engineered and assembled in Clackamas, Oregon, USA, the ZEON XD 10-S features a high-efficiency 12V DC motor, advanced 3-stage planetary geartrain, and fully sealed waterproof construction. It delivers consistent pulling performance with improved corrosion resistance and enhanced electrical reliability.

This model includes 100 feet of 3/8" Spydura synthetic rope, a forged aluminum hawse fairlead, and full metal armor protection. With IP68 and IP69K sealing, it is designed to perform in mud, water, dust, and harsh trail conditions without compromise.

Product Features

• Rated Line Pull: 10,000 lb recovery capacity.
• Motor: High-performance 12V DC series wound motor for strong torque output.
• Geartrain: 3-stage planetary gear system for smooth and efficient operation.
• Gear Ratio: 141:1 optimized for speed and pulling balance.
• Line Speed: Fast no-load recovery speed for efficient winching.
• Rope: 100 ft of 3/8" Spydura synthetic rope with abrasion-resistant sleeve.
• Fairlead: Forged aluminum hawse fairlead for synthetic rope compatibility.
• Brake System: Automatic cone brake for secure load control.
• Waterproof Rating: IP68 submersion and IP69K high-pressure spray protection.
• Construction: Full metal armor housing for impact and debris protection.
• Corrosion Resistance: OE-grade coatings and hardware for long service life.
• Control System: Wired remote with included HUB wireless receiver (app compatible).

Product Specification

Specification	Details	Specification	Details
Part Number	110010	Rated Line Pull	10,000 lb (4536 kg)
Voltage	12V DC	Motor Type	Series Wound
Geartrain	3-Stage Planetary	Gear Ratio	141:1
Rope Length	100 ft (30 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Synthetic Rope	Fairlead Type	Forged Aluminum Hawse
Brake Type	Automatic Cone Brake	Solenoid Type	Albright Contactor
Control Type	Wired Remote / Wireless HUB Included	Free Spool	Yes
Power In/Out	Yes	Duty Cycle	Intermittent
Mount Type	Standard 4-Bolt Mount	Mounting Bolt Pattern	10 in x 4.5 in
Dimensions (L x W x H)	23.9 in x 7.1 in x 10.5 in	Weight	Approx. 85–95 lbs
Waterproof Rating	IP68 / IP69K	Construction	Full Metal Armor Housing
Corrosion Protection	OE-grade coated components	Country of Manufacture	USA (Clackamas, Oregon)
Warranty	Limited Lifetime Mechanical Warranty	Recommended Use	Off-Road / Recovery / Overland / Light Truck

INSTALLATION GUIDE

ZEON XD - Installation Guide

ZEON XD - Service Manual

Operation Guide

Product Line Up

The ZEON XD lineup is WARN’s premium recovery winch family designed for 10,000 lb to 14,000 lb applications. The 10-S model is the entry point into the XD series, offering high-speed recovery performance, advanced waterproofing, and heavy-duty construction for mid-size trucks and SUVs.
