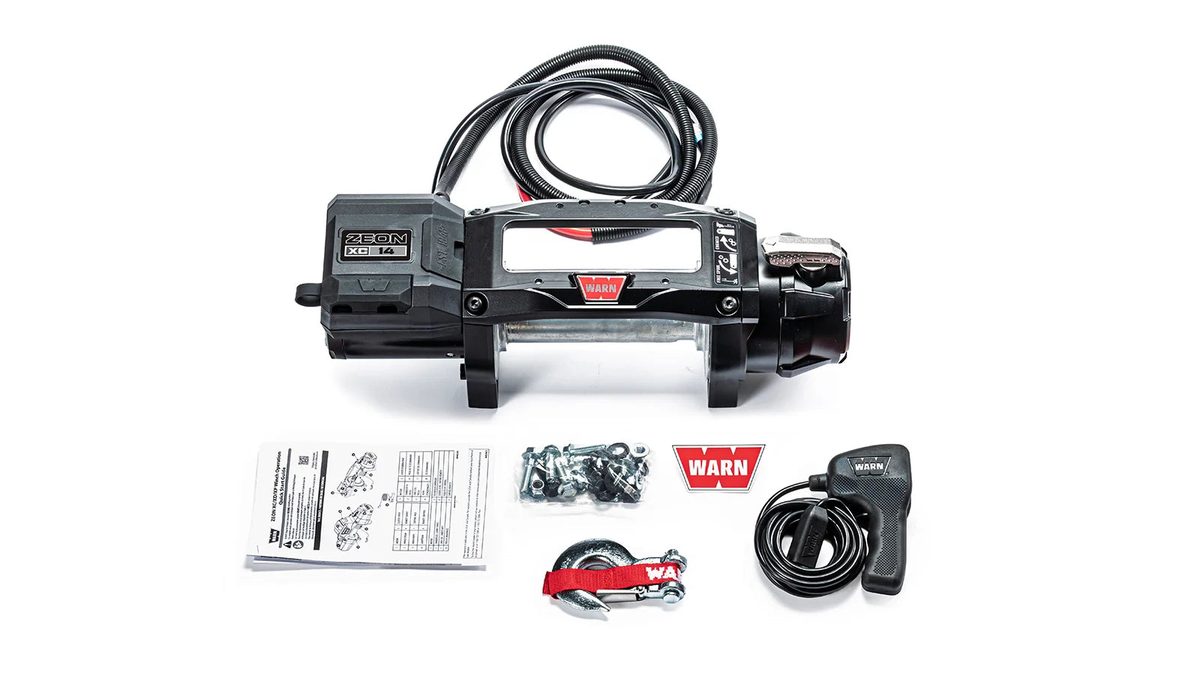

Warn ZEON XC 14 Winch (No Rope) - 110314

For those looking for ZEON performance in a compact shape, the ZEON XC is the one to get. The ZEON XC 14 offers a whopping 14,000 lbs. of pulling capacity making it great for big 3/4-ton or 1-ton trucks, large SUVs, and other heavy rigs. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Plus, it's designed, engineered, and assembled in the USA.

Product Features

• Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.
• Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
• The remote socket can easily be relocated within 9” of the control pack for added mounting versatility.
• Ultimate performance and durability: best-in-class line speed, and superior durability
• Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
• OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
• This specific ZEON XC does not include rope
• Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
• Designed, engineered, and assembled in the USA


Product Specification

Specification	Details	Specification	Details
Brake Activation	Automatic	Brake Type	Cone
Cable Diameter	3/8 IN	Cable Length	80 FT
Cable Material	No rope included	Color	Black
D Shackle Included	No	Fairlead Type	No fairlead included
Free Spooling	Yes	Gear Ratio	213:1
Gearing	3-Stage Planetary	Hand Saver	Yes
Length	22 IN	Maximum Height	7.8 IN
Maximum Width	6.7 IN	Motor Type	Series Wound
Motor Voltage	12V	Mount Type	Fixed Mount
Mounting Bolt Pattern Length	4.5 IN	Mounting Bolt Pattern Width	10 IN
Mounting Hole Quantity	4	Power Out	Yes
Rated Line Pull	14000 LB	Remote Included	Yes
Remote Type	Wire	Requires Mount	Yes
Solenoid Type	Contactor	Tree Saver	No
Type	Electric	Voltage	12V
Winch Rating	Electric

Installation Guide

ZEON XC - Installation Guide

ZEON XC - Service Manual

Operation Guide

Product Line Up

Built on the proven ZEON XD platform, the ZEON XC delivers top-tier performance in a low-profile, compact package — offering greater mounting flexibility, best-in-class line speed and capacity, superior durability, and the industry's leading warranty.
