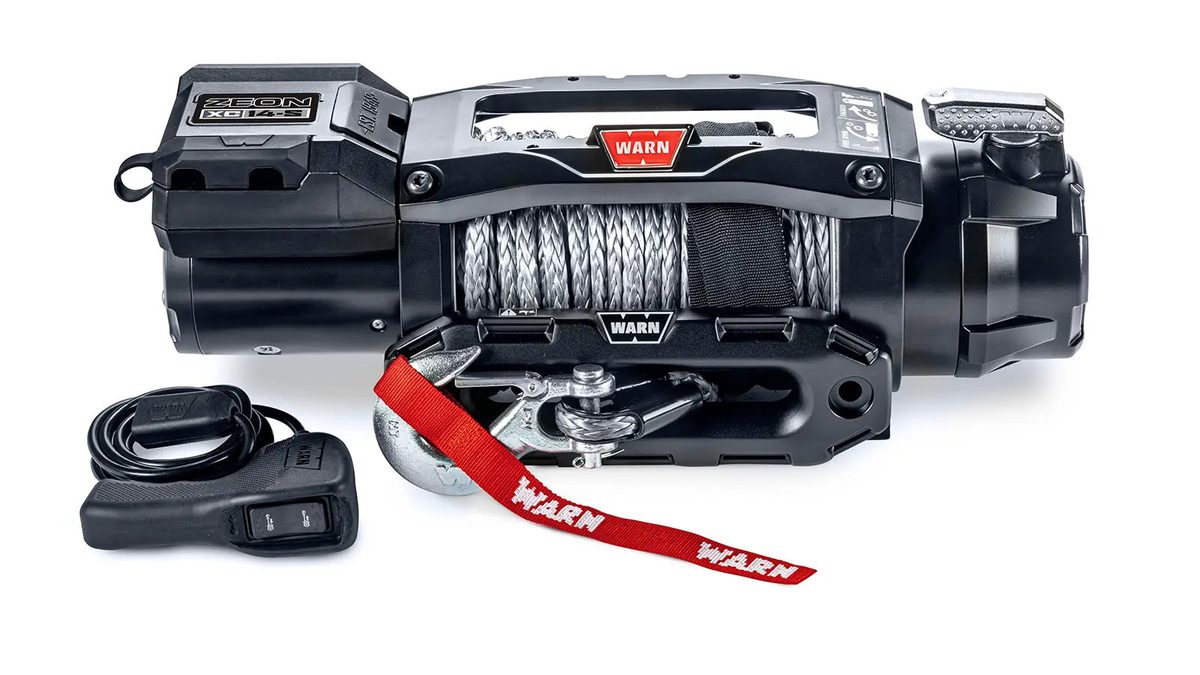

Warn ZEON XC 14-S Winch - 110514

The WARN ZEON XC 14-S Winch (Part Number 110514) is a premium 14,000 lb electric recovery winch designed for high-performance off-road, overland, and heavy-duty recovery applications. It is part of WARN’s ZEON XC series, engineered to deliver maximum pulling power in a compact, low-profile housing for tighter bumper installations.

Built and assembled in Clackamas, Oregon, USA, the ZEON XC 14-S features a high-output 12V DC motor, advanced 3-stage planetary geartrain, and fully sealed IP68/IP69K waterproof construction. It delivers class-leading line speed, improved durability, and reliable performance in extreme environments.

This model includes 80 feet of 3/8" Spydura Pro synthetic rope, a forged aluminum hawse fairlead, and a ruggedized control system with both wired and wireless operation. The XC design focuses on reduced footprint while maintaining full ZEON-level performance capabilities.

Product Features

• Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
• The remote socket can easily be relocated within 9” of the control pack: for added mounting versatility.
• Ultimate performance and durability: best-in-class line speed, and superior durability
• Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
• OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
• Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope: and a large-radius black Epic aluminum hawse fairlead
• Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
• Designed, engineered, and assembled in the USA

Product Specification

Specification	Details	Specification	Details
Part Number	110514	Rated Line Pull	14,000 lb (6350 kg)
Motor Type	12V DC Series Wound	Geartrain	3-Stage Planetary
Gear Ratio	213:1	Brake Type	Cone Brake (Automatic)
Rope Length	80 ft (24.4 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Pro Synthetic Rope	Fairlead Type	Aluminum Hawse
Voltage	12V DC	Control Type	Wired Remote (Wireless compatible depending on setup)
Mount Type	Standard 4-bolt mount	Mounting Pattern	10 in x 4.5 in
Waterproof Rating	IP68 / IP69K	Free Spool	Yes
Winch Type	Electric Recovery Winch	Country of Manufacture	USA (Clackamas, Oregon)
Application	Off-road / recovery / heavy trucks / overland	Construction	Low-profile XC compact housing

INSTALLATION GUIDE

ZEON XC - Installation Guide

ZEON XC - Service Manual

Operation Guide

Product Line Up

The ZEON XC lineup is WARN’s compact high-performance winch series designed for users who need maximum pulling power in a reduced footprint. The 14-S model is the highest capacity XC winch, combining 14,000 lb performance with a low-profile design optimized for tight bumper installations.
