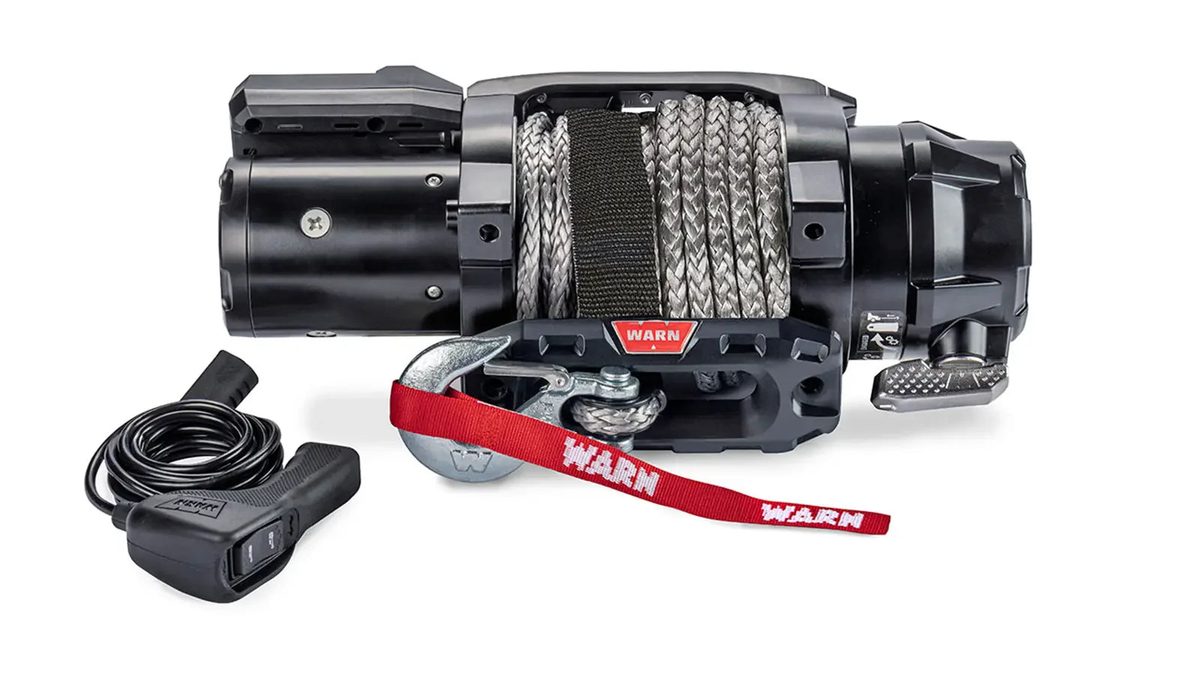

Warn ZEON XC 12-S Winch for WARN Fully Hidden Kits - 112356
$1,749.99
Free shipping to the lower 48
Not sure this is your part? Call (845) 579-3631 — Mon–Fri, 8:00AM–6:00PM ET. We'll confirm fitment before you buy.
- Fitment guaranteed
- 30-day returns
- Secure checkout
- Install support
About this product
WARN supplies this winch. Part number 112356. Ships free to the lower 48 in 1–2 business days.
If you're buying a WARN Fully Hidden Kit, this is the winch to use. The ZEON XC 12-S For Fully Hidden Kit offers 12,000 lbs. of pulling capacity in a narrow, short-drum configuration. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Plus, it's designed, engineered, and assembled in the USA.
Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.
Product Specification
| Specification | Details | Specification | Details |
|---|---|---|---|
| Brake Activation | Automatic | Brake Type | Cone |
| Cable Diameter | 3/8 IN | Cable Length | 80 FT |
| Cable Material | Synthetic Rope | Color | Black |
| D Shackle Included | No | Fairlead Type | Hawse |
| Free Spooling | Yes | Gear Ratio | 176:1 |
| Gearing | 3-Stage Planetary | Hand Saver | Yes |
| Length | 19.5 IN | Maximum Height | 7.8 IN |
| Maximum Width | 6.7 IN | Motor Type | Series Wound |
| Motor Voltage | 12V | Mount Type | Fixed Mount |
| Mounting Bolt Pattern Length | 4.5 IN | Mounting Bolt Pattern Width | 10 IN |
| Mounting Hole Quantity | 4 | Power Out | Yes |
| Rated Line Pull | 12000 LB | Remote Included | Yes |
| Remote Type | Wire | Requires Mount | Yes |
| Solenoid Type | Contactor | Tree Saver | No |
| Type | Electric | Voltage | 12V |
| Winch Rating | Electric |
INSTALLATION GUIDE
Product Line Up
Built on the proven ZEON XD platform, the ZEON XC delivers top-tier performance in a low-profile, compact package — offering greater mounting flexibility, best-in-class line speed and capacity, superior durability, and the industry's leading warranty.
