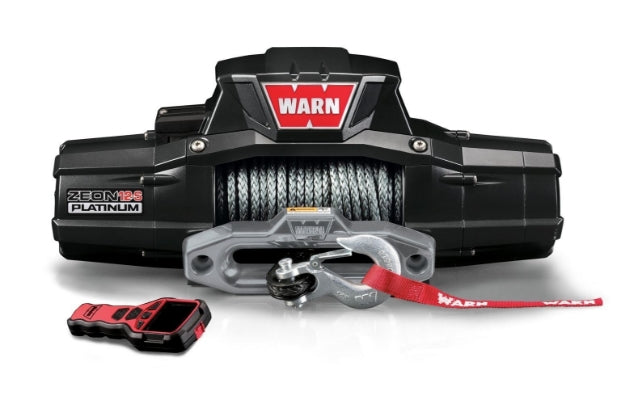

Warn ZEON 12-S Platinum Winch - 95960

The ZEON 12-S Platinum is a winning combination of high-tech features mixed with ultimate performance to create an incredibly versatile pulling product. With a 12,000 lb. capacity it's great for heavy 3/4-ton and 1-ton full-size vehicles and bigger built 4x4s.

With a remote clutch, advanced wireless remote, 12-volt accessory outlets, and fast line speeds, this winch offers loads of modern pulling prowess. The ZEON Platinum is the future of winching with state-of-the-art features, cutting-edge technology, and world-class engineering.

The one-of-a-kind Advanced Wireless Remote controls the clutch, power in/power out, plus it displays motor temperature and vehicle battery info. It also can control two 12-volt accessories, which can be plugged directly into the winch.

Product Features

• High-speed motor and unique gear train: provides 33% faster line speed than the ZEON, and increased durability
• Plug two 12V accessories directly into the winch and control with remote: no drilling through the firewall
• Advanced Wireless Remote operates: the winch's clutch, 12-volt accessories, and power-in and power-out functions. Also provides vehicle battery info and motor temperature details.
• Full IP68 waterproofing: keeps water and the elements out
• Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope and a large-radius polished aluminum hawse fairlead
• Large diameter drum: reduces rope wear, dissipates brake heat, and features a unique rope anchor system for strength
• Convertible control pack: for upright or low-profile mounting options
• Best-in-class cone brake: holds the winch's full-rated load
• Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)

Product Specification

Specification	Details	Specification	Details
Part Number	95960	Rated Line Pull	12,000 lb (5443 kg)
Voltage	12V DC	Motor Type	Series Wound High Output
Geartrain	3-Stage Planetary	Control Type	Advanced Wireless Remote + Remote Clutch
Rope Length	80 ft (24.4 m)	Rope Diameter	3/8 in (9.5 mm)
Rope Type	Spydura Synthetic Rope	Fairlead Type	Polished Aluminum Hawse
Waterproof Rating	IP68	Accessory Ports	Two 16 amp 12V accessory outlets
Mount Type	Fixed Mount / Convertible Control Pack	Brake Type	Cone Brake (Best-in-class)
Drum Type	Large Diameter Drum	Free Spool	Remote-controlled clutch engagement
Construction	Full IP68 sealed housing	Application	Off-road / Recovery / Heavy-duty vehicles

INSTALLATION GUIDE

ZEON Platinum - Installation Guide

ZEON Platinum - Quick Guide

Synthetic Rope Install & Operation Guide

Product Line Up

The ZEON Platinum lineup is WARN’s most advanced winch series, featuring smart wireless control, accessory power integration, and real-time performance feedback. The 12-S model represents the mid-tier capacity option in the Platinum range, balancing high pulling power with intelligent control systems.
