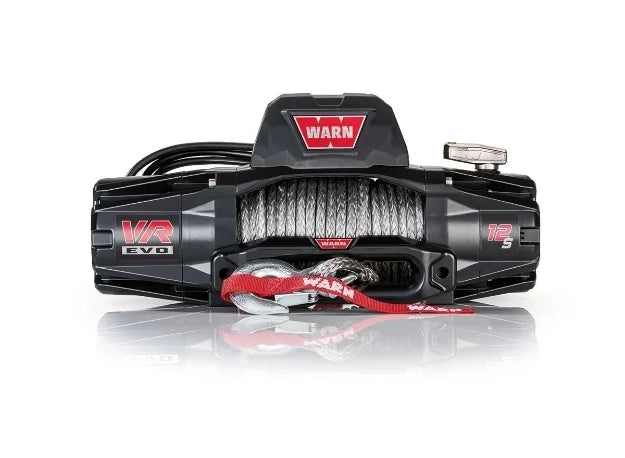

Warn VR EVO 12-S Winch - 103255

Ideal for 3/4 and one-ton pickups and all types of larger, heavier rigs, the 12,000 lb. capacity VR EVO 12-S has loads of amenities, a rugged style, and a price that won’t pull you out of your budget. These are the hardest-working Standard-Duty winches we've ever offered and they have an equally impressive standard warranty too.

VR EVO winches are the hardest-working, standard-duty winches available. They feature the lowest amp draw and fastest line speed under load in their class, IP68-rated waterproof construction for performance in all conditions, and a two-in-one wireless/corded remote that gives you options when winching. Plus, they're covered by our industry-leading limited lifetime warranty. All VR EVO winches are available at a price that won't break the bank.

Product Features

• Rugged, one-piece, cast-aluminum tie plate for added strength and durability
• 90' of lightweight, easy-to-handle 3/8" synthetic rope and a black hawse fairlead
• Two-in-one remote with wired and wireless controls for increased winching options
• Sealed Albright contactor delivers the ultimate in reliability
• Control pack can be relocated for low-profile installations
• Limited lifetime warranty (mechanical), seven year electrical warranty


Product Specification

Specification	Details	Specification	Details
Brake Activation	Automatic	Brake Type	Spring
Cable Diameter	3/8 IN	Cable Length	90 FT
Cable Material	Synthetic Rope	Color	Black
D Shackle Included	No	Fairlead Type	Hawse
Free Spooling	Yes	Gear Ratio	234:1
Gearing	3-Stage Planetary	Hand Saver	Yes
Length	21 IN	Maximum Height	10.1 IN
Maximum Width	7.1 IN	Motor Type	Series Wound
Motor Voltage	12V	Mount Type	Fixed Mount
Mounting Bolt Pattern Length	4.5 IN	Mounting Bolt Pattern Width	10 IN
Mounting Hole Quantity	4	Power Out	Yes
Rated Line Pull	12000 LB	Remote Included	Yes
Remote Type	Wire, Wireless	Requires Mount	Yes
Solenoid Type	Contactor	Tree Saver	No
Type	Electric	Voltage	12V
Winch Rating	Electric

INSTALLATION GUIDE

VR Evo Installation Guide

VR Evo Control Pack Install Guide

VR Evo Control Module Instruction

VR EVO Winch Lineup

The VR EVO series is WARN's modern take on value-oriented, standard-duty truck and SUV winches — aimed at users who want dependable recovery performance without premium pricing. Featuring rugged construction, IP68 waterproofing, and efficient designs that balance power and amp draw, VR EVO winches deliver solid line speed and strength for everyday 4×4 use.

Available in a range of capacities (8,000–12,000 lb) with your choice of steel cable or synthetic rope and include convertible control packs and combined wired/wireless remotes.
