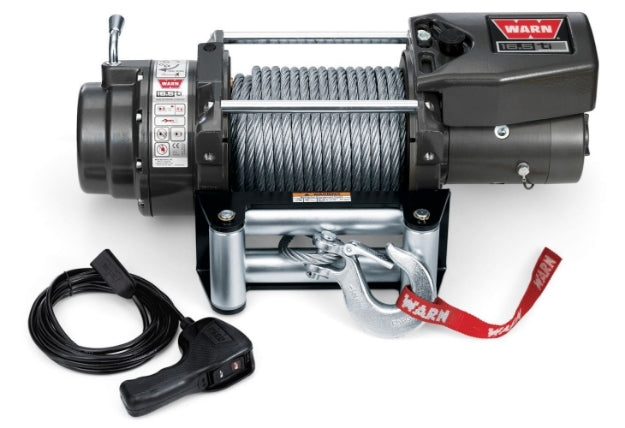

Warn 16.5ti Heavyweight Winch - 68801

This is the highest-capacity, most technologically advanced winch for big 3/4-ton and 1-ton trucks in the WARN lineup. With a massive 16,500 lb. capacity and a thermometric indicator for winching feedback, this classic heavyweight is for the biggest loads and hardest pulls. Packed with performance and reliability, the 16.5ti has extreme duty sealing to keep the water and gunk out. Plus it's designed, engineered, and assembled in the USA.

Built for the biggest, heaviest and longest pulls, the WARN Heavyweight Series winches are capable of pulling over 16,000 lbs. and feature heavy-duty carrier plates that are engineered to handle the massive gear train stress generated when recovering the largest of loads.

Product Features

• Thermometric indicator (ti) provides motor temperature feedback via LED on remote control
• Extreme-duty sealing helps protect the winch from the elements, keeping reliability in
• Metal control box for added protection for the electronics
• Albright contactor control for the ultimate in durability and reliability
• 90' of durable 7/16" steel rope and a roller fairlead
• Class-leading cone brake holds the winch's full-rated load
• Chip-resistant powder-coated finish with primer undercoating for superior corrosion resistance
• Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)


Product Specification

Specification	Details	Specification	Details
Cable Length	90 FT	Cable Material	Metal Rope
Motor Voltage	12V	Mount Type	Fixed Mount
Rated Line Pull	16500 LB	Requires Mount	Yes

INSTALLATION GUIDE

Installation Guide

Operation Guide

16.5ti Winch Lineup

Got a big truck? You’ll want one of these. With capacities up to 16,5000 lbs. and heavy-duty carrier plates engineered to handle the massive gear train stresses of big pulls, these winches are up to the big tasks. Pair it with a WARN Ascent HD front bumper for the ultimate heavyweight pulling combination.
