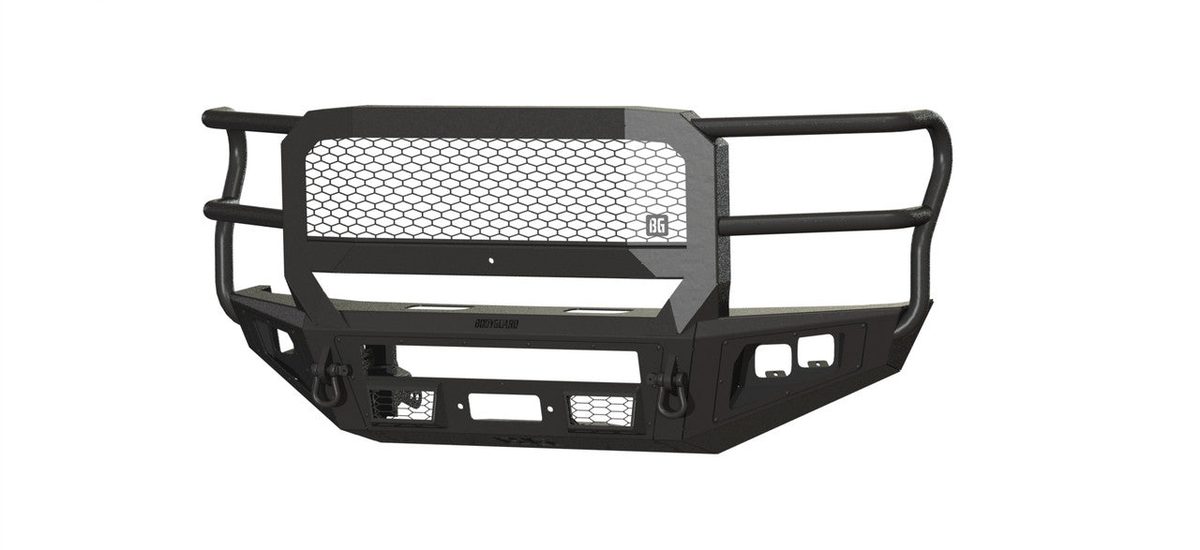

Bodyguard A2 Extreme Front Bumper For 2017-2022 Ford F-450 - CEF17D

Heavy-duty, smooth 3/16" plate bumper with winch mount and light bar cutout.
Modular center skid plate and light bracket options. Multiple grill guard bar options.

• 3/16" plate-style shell
• 1/4" frame mounts
• 3/4" thick shackle mounts
• Rectangle cutout inside the bumper fits a Rigid 30" E-Series light bar* (see fitment notes)
• Rectangle cutout inside the push bar fits a Rigid 20" SR-Series light bar
• Push bar accommodates relocation of front grill camera (if applicable)**
• Bolt-on center skid accommodates Warn winches** (see fitment notes)
• Bolt-on brackets for Rigid surface mount cube lights
• Bolt-on license plate bracket
• Bodyguard logo cutout
• Stainless button-head bolts
• Average weight: 285–310 lbs

Notes:
Requires additional camera relocation harness, sold separately.

Winch & Light Bar Fitment

This bumper is designed to mount a light bar or winch, not both.
If mounting both inside the bumper, a smaller frame winch with a foot-down mount (such as the Warn Zeon 12 winch) must be used.
If using a larger frame winch with a foot-forward mount (such as the Warn 16.5ti or Warn M-Series), a light bar cannot be mounted due to bracket interference.

Front Sonar Sensor Compatibility Notes

These bumpers have been tested and appear compatible with factory sonar sensors, even through the expanded metal insert.
In some cases, recalibration or a computer flash at a dealership may be required for proper sensor function.
