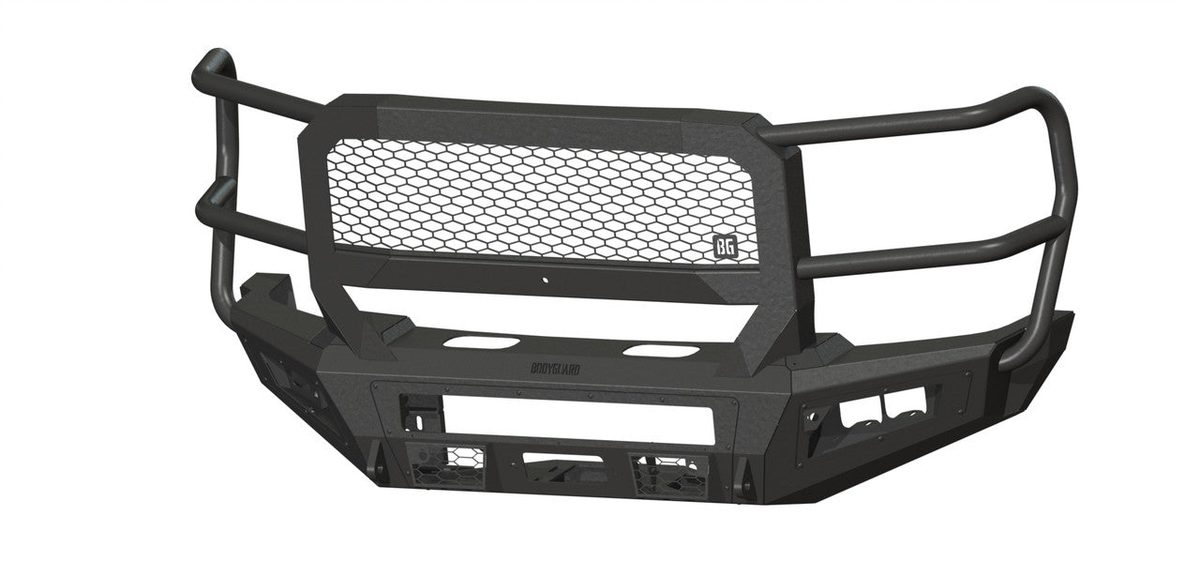

Bodyguard A2 Extreme Front Bumper For 2023-2026 Ford F-450 - CEF23D

Heavy-duty, smooth 3/16" plate bumper with winch mount & light bar cutout. Modular center skid plate & light bracket options. Multiple grill guard bar options.

• 3/16" plate-style shell
• 1/4" frame mounts
• 3/4" thick shackle mounts
• Accommodates one Rigid 30" E-series light bar (see fitment notes)
• Bolt-on center skid accommodates these Warn winches (see fitment notes)
• Bolt-in fog buckets for Rigid surface mount cube lights

• Bolt-on license plate bracket
• Bodyguard logo cutout
• Stainless button-head bolts
• Average weight 345-365 lbs

Notes

• WINCH & LIGHT BAR FITMENT NOTES: If mounting both item inside the bumper, it will require using a smaller frame winch with a foot-down mount (such as Warn Zeon 12 winch). If using a larger frame winch with a foot-forward mount (such as Warn 16.5ti or Warn M-Series) you can NOT mount a light bar with it, due to the winch mounting bracket inside the bumper blocking the light bar cutout.
• FRONT SONAR SENSOR COMPATIBILITY NOTES: These have been tested and as far as we can tell the sonar sensor appears to be compatible with our bumper, even reading through the expanded metal insert. Sometimes it does take some recalibration to reset the module, and sometimes a dealership will need to flash the computer to for everything to properly reset and work.
