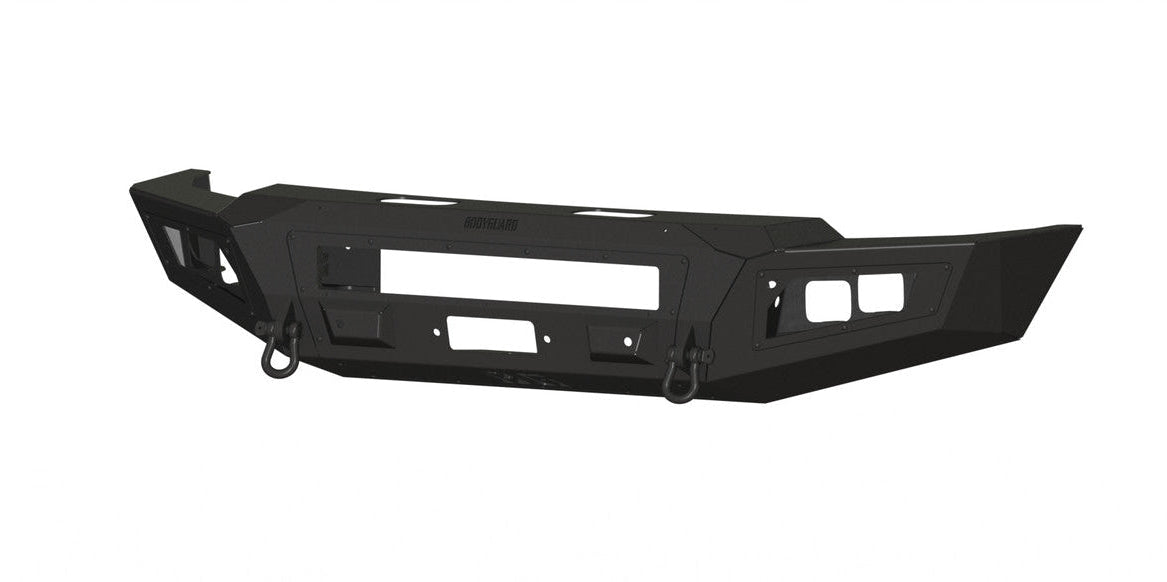

Bodyguard A2 Base Front Bumper For 2020-2023 GMC Sierra 2500/3500 - CAG20B

Heavy-duty, smooth 3/16" plate bumper with winch mount & light bar cutout.  Modular center skid plate & light bracket options. Multiple grill guard bar options.

• 3/16" plate-style shell
• 1/4" frame mounts
• 3/4" thick shackle mounts
• Accommodates a Rigid 30" E-series light bar (see fitment notes below)
• Bolt-on center skid accommodates Warn winches (see fitment notes below)
• Bolt-in fog buckets to accommodate Rigid surface mount cube lights

• Bolt-on license plate bracket
• Bodyguard logo cutout
• Stainless button-head bolts
• Average weight 265-275 lbs

Notes

• WINCH & LIGHT BAR FITMENT NOTES:  This bumper is designed to mount a light bar **OR** winch, not both.  If mounting both item inside the bumper, it will require using a smaller frame winch with a foot-down mount (such as Warn Zeon 12 winch).  If using a larger frame winch with a foot-forward mount (such as Warn 16.5ti or Warn M-Series) you can NOT mount a light bar with it, due to the winch mounting bracket inside the bumper blocking the light bar cutout.
• FRONT SONAR SENSOR COMPATIBILITY NOTES: Trucks with the "technology package" which offer adaptive cruise control have been tested and as far as we can tell the sonar sensor appears to be compatible with our bumper, even reading through the expanded metal insert.  Sometimes it does take some recalibration to reset the module, and sometimes a dealership will need to flash the computer to for everything to properly reset and work.
• LIGHT COMPATIBILITY NOTES:  All products are designed to fit Rigid LED off-road lights.  We cannot guarantee fitment with other brands, however most lights available on the market have similar dimensions and our bumpers and brackets are designed to be adjustable.  Laws vary by state so check your local laws regarding off-road light usage on highways.
• All lighting, winches, and other accessories pictured are sold separately.
• PARKING SENSOR FUNCTIONALITY MAY BE LIMITED ON TRUCKS WITH LESS THAN SIX INCHES OF LIFT.

• This product is engineered, assembled, and welded at Bodyguard Bumpers manufacturing facility in Texas.
• Ships 18-wheeler truck freight on oversized pallet to destinations in US.
