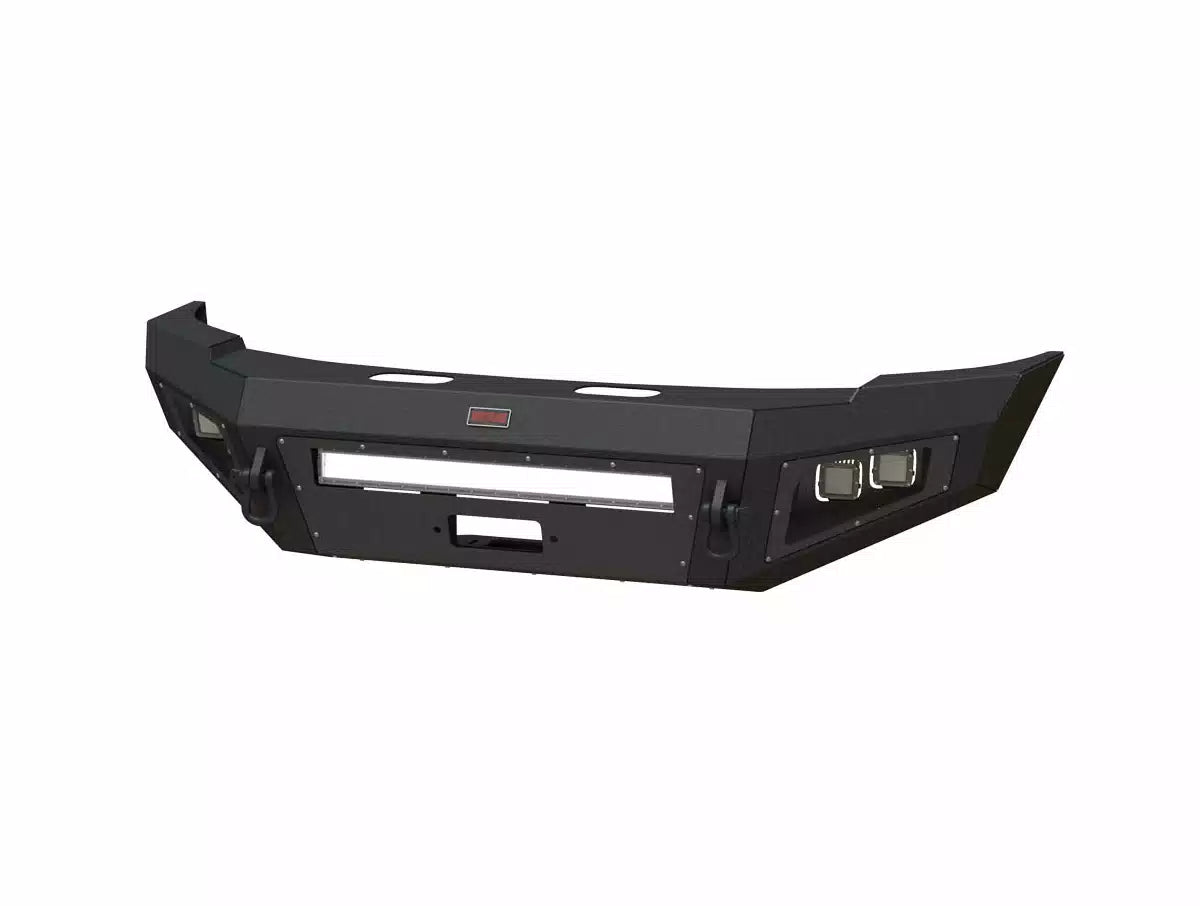

Bodyguard A2 Base Front Bumper For 2017-2022 Ford F-450 - CAF17D

Heavy-duty, smooth 3/16" plate bumper with winch mount & light bar cutout. Modular center skid plate & light bracket options. Multiple grill guard bar options.

• 3/16" plate-style shell
• 1/4" frame mounts
• 3/4" thick shackle mounts
• Rectangle cutout inside the bumper fits a Rigid 30" E-Series light bar
• Rectangle cutout inside the push bar fits a Rigid 20" SR-Series light bar
• Push bar accommodates relocation of front grill camera (if applicable)
• Bolt-on center skid accommodates Warn winches** (see fitment notes below)
• Bolt-on brackets for Rigid surface mount cube lights
• Bolt-on license plate bracket
• Bodyguard logo cutout
• Stainless button-head bolts
• Average weight: 285–310 lbs


Notes

• WINCH & LIGHT BAR FITMENT NOTES:
  This bumper is designed to mount a light bar or winch, not both.
  If mounting both inside the bumper, a smaller frame winch with a foot-down mount (such as the Warn Zeon 12 winch) must be used.
  If using a larger frame winch with a foot-forward mount (such as the Warn 16.5ti or Warn M-Series), a light bar cannot be mounted due to bracket interference.
• FRONT SONAR SENSOR COMPATIBILITY NOTES:
  These bumpers have been tested and appear compatible with factory sonar sensors, even through the expanded metal insert.
  In some cases, recalibration or a computer flash at a dealership may be required for proper sensor function.
