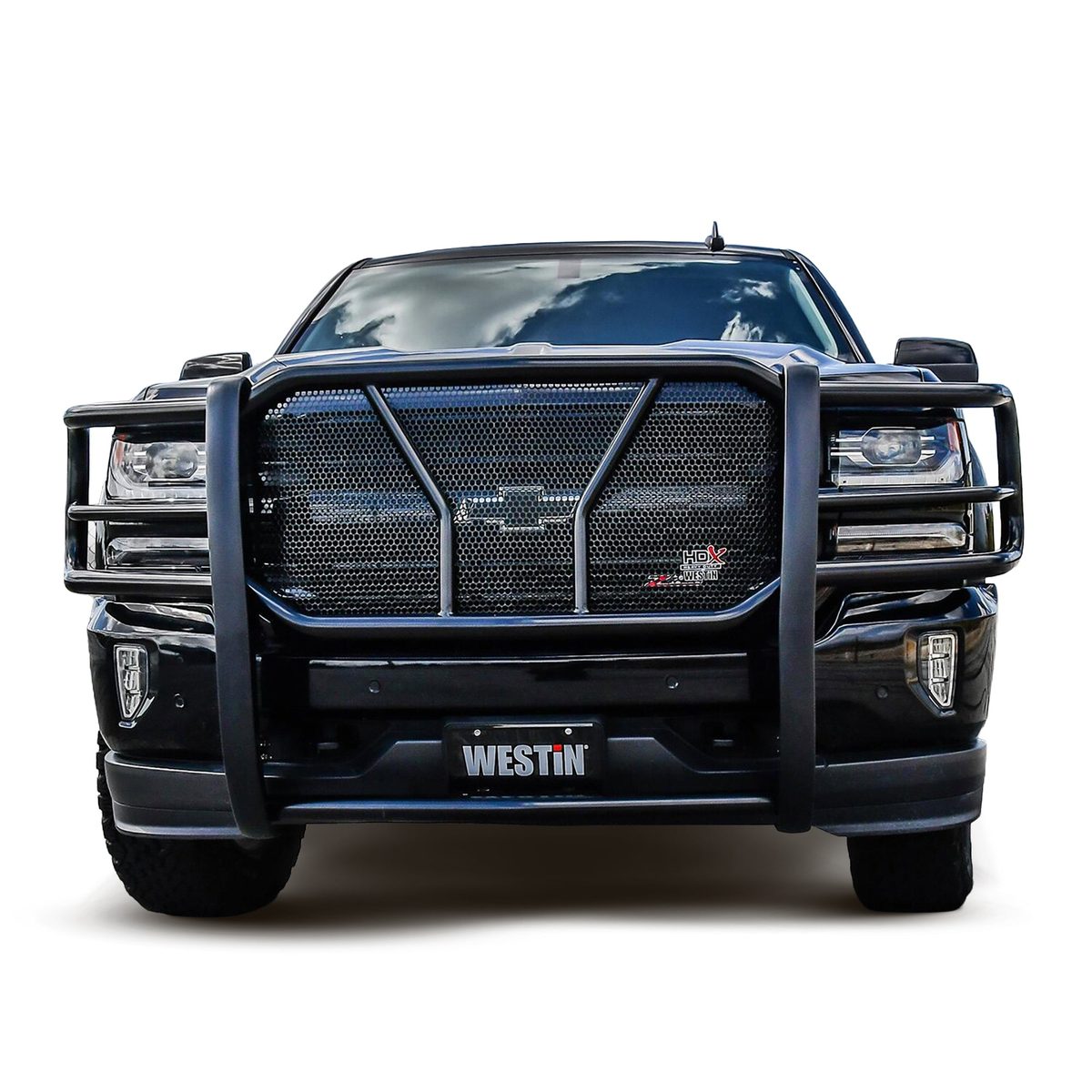

Westin HDX Grille Guard For 2016-2018 Chevrolet Silverado 1500

The HDX Grille Guard is the ultimate in extreme truck gear. It’s available in a stainless or black powder coat finish and the uprights are finished and protected with extra wide rubber that is 1/8" thick and 2 3/4" wide. The result is a solid clean look with serious off-road protection. When you upgrade your truck with Westin’s HDX Grille Guard, consider adding an LED Light bar kit, too.

This HDX Grille Guard fits a wide range of trucks. It's available in a 1-piece or 3-piece configuration. Choose the 1-piece set up for a complete welded grille with incorporated headlight protection. If you want more flexibility, choose the 3-piece system with detachable headlight protection that can be added or removed when desired.

Installation is easy, and the HDX Grille Guard comes with a mount kit, all the required hardware, and even carries a lifetime warranty when choosing the polished stainless steel finish.

The HDX 1-Piece Grille Guard is a fully welded 1-piece grille guard that features full wraparound wings made of heavy duty 2in. diameter tube. Uprights are finished and protected with extra wide rubber that is 1/8in. thick and 2 3/4in. wide resulting in a solid clean look. The full punch plate grille protects the vehicles grille area.

• 2" tube full wrap-around wings
• Mount kit and hardware included
• Full punch plate grille
• 1-piece with welded headlight guards

The HDX 3-Piece Grille Guard has proven its strength on emergency responder vehicles in a wide variety of high stress environments. Each application is engineered with strategically placed gusseting and reinforcement to provide superior structural rigidity that eliminates unwanted vibrations. The uprights feature durable 2-3/4in. wide rubber push pad strips for added coverage.

• Mount kit and hardware included
• 3-piece with bolt on headlight guards
• Full punch plate grille
• 2" tube full wrap-around wings
• 1 1/4" tube for support wings - On some applications
• Set of 2 optional light clamps - sold separately

Built with a heavy-duty frame mount system and wraparound wings made from rugged 2" diameter high-strength tubing, these grille guards provide complete front-end protection. Thanks to their modular design, all HDX Modular Grille Guards ship via parcel post rather than LTL freight, delivering significant shipping cost savings. The HDX Modular Grille Guard is finished in either polished stainless steel or black powder coat over an electrostatic base coat, ensuring long-lasting protection against corrosion. Each kit includes the mounting brackets and hardware needed for a complete, professional-grade installation, and every HDX Modular Grille Guard is backed by a 3-year warranty.

Installation Guide

57-23875
57-3875
57-3870

Specifications

Finish: Polished
Material: 304 Stainless Steel
Warranty: Lifetime

Finish: Black Powder Coat
Material: E-Coated Steel
Warranty: 3 year

WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm. For more info go to www.p65warnings.ca.gov

Product Fitment:

• 2016-2018 Chevrolet Silverado 1500
• 2019 Chevrolet Silverado 1500 LD
