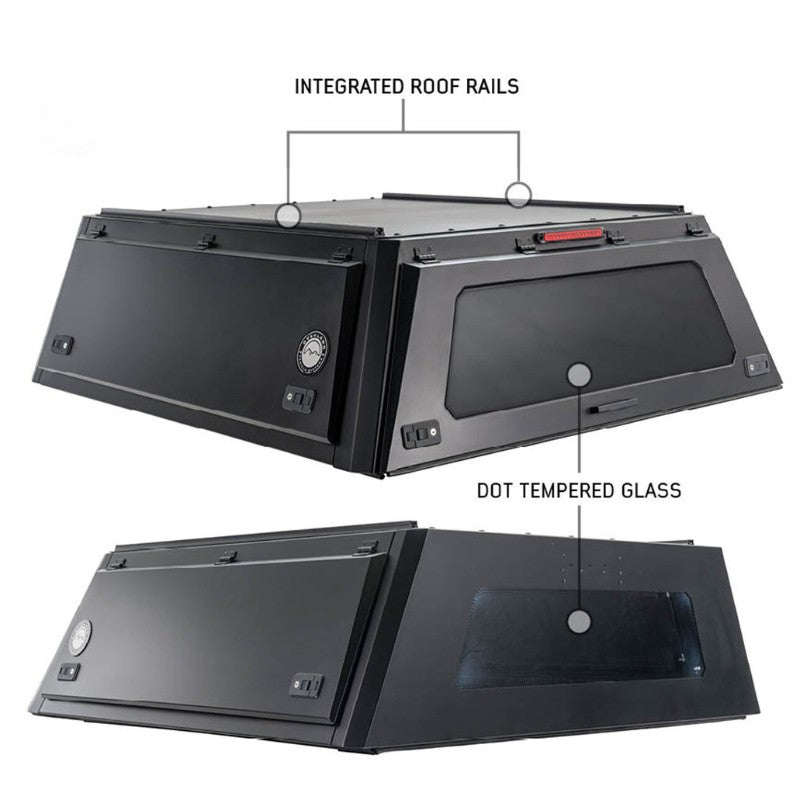

OVS Expedition Truck Cap For 2023-2026 Ford F250/F350 6'9" Bed - 70100009

Specifications

• What is included to seal the Expedition Truck Cap to prevent water and dust ingress?

  OVS provides a 3M single bulb seal that is placed around the perimeter on the bed rails and bulkhead to prevent water/dust from coming in. OVS' rear hatch also has a bulb seal that seats on the top of the tailgate in the closed position. In addition, they provide 2 pieces of butyl tape that can be placed at the bulkhead rail where there is a step down from the side plastic bed rail to the bulkhead to help prevent water/dust intrusion.

  It is important to note that no truck bed is completely sealed, and some water intrusion may be possible although greatly reduced with the bulb seal. Likely water intrusion is often found around the tailgate perimeter.

• Does the Expedition Truck Cap come with a crossbar system?

  There will be an Overland Vehicle Systems cross-bar option available. The cross bars will mount to the included cap rails (the rails that go parallel with the frame rails). The bars will have a dynamic weight rating of 325 lbs and a static weight rating of 750 lbs and have a rise of approximately 2” above the cap.

• What is the load-carrying weight limit for the Expedition Truck Cap?

  When using the optional Overland Vehicle Systems cross bars, the dynamic weight limit is 350 lbs with a static weight limit is 750 lbs.

• Are the Expedition Truck Cap included roof rails compatible with other aftermarket cross bars?

  The included rails were designed around the Overland Vehicle Systems optional cross bars. The included roof rails do have a 19mm slot which will allow for various systems. OVS has been testing various aftermarket crossbar systems and found that the Yakima HD Crossbars (SKU: #8001156), the Yakima Landing Pads (SKU: #8000221), and the Yakima Skyline Towers (SKU: #8000163) if bought together is compatible with their Expedition Truck Cap.

• Does the Expedition Truck Cap glass closest to the cab have a slider or drop-down option?

  The current design is a fixed rear window with no drop-down/pass-through accessibility.

• Are the Expedition Truck Cap latches lockable?

  Each Expedition Truck Cap will come with keyed-alike locks.

• Can the Expedition Truck Cap be locked or opened from the inside?

  The Expedition Truck Cap cannot be locked or opened from the inside of the bed.

• Does the Expedition Truck Cap have a vent?

  The Expedition Truck Cap vent is a fixed vent located above the glass on the panel located closest to the cab. The vent allows for air ventilation as well as circulation to reduce condensation inside the topper. It also allows air to escape during closing of all of the panels.

• Is there any drilling required to install the Expedition Truck Cap?

  The only drilling involved in the Expedition Truck Cap installation is the hole you drill for the wiring portion of the Toyota Tacoma installation.
