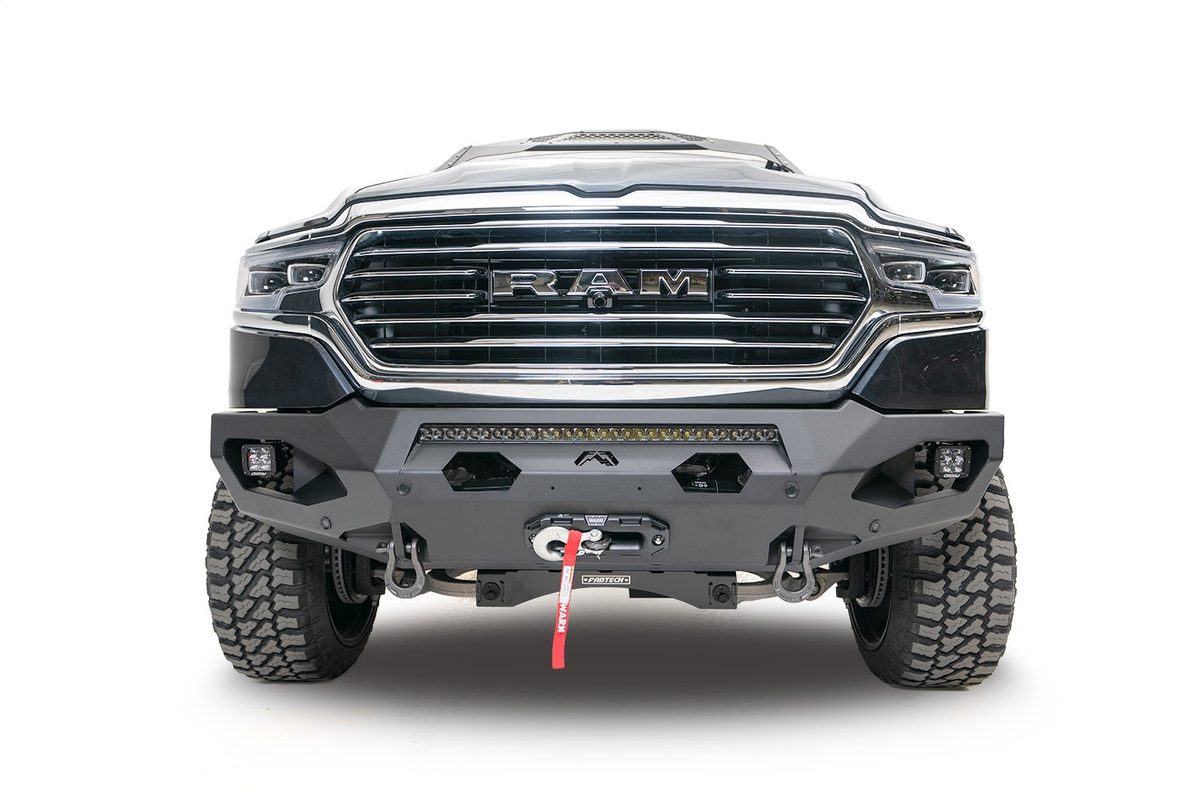

Fab Fours Matrix Front Bumpers For 2019-2026 RAM 1500

Equipped to hold a 30 Inch light bar and a 12,000 Pounds Winch, the Fab Fours Matrix Bumper Series gives you the peak of style and utility for your truck. This bumper is a combination of the best aspects of the Premium Winch Bumper and the Vengeance Bumper Series to give you the best slim fitting steel bumper in the truck game. If you are looking for one bumper that checks every box, look no further than the Matrix Series from Fab Fours.

• Accommodates factory front camera (2019-2022). Minor Camera Interference with Pre-runner Style Only
• Winch ready for 12k winch or smaller. Relocation bracket will be required for all winches. Winch Tested (not limited to): Warn Zeon 12. See Notes section for relocation options.
• Center mount accommodates a single row 30″ light bar (not included). Double row can be used if not running a winch.
• Removable light inserts for optional customization
• Side mounting slots and tab for (1) 3x3 LED Light (lights not included).
• Aggressive Design
• Provides far more tire clearance.
• Lower cutout for increased airflow.
• Integrated Sensor Holes
• Integrated D-Ring Mounts
• Does not work with Rebel, Express, Sport, Diesel and Classic Models.

Product Specifications

Without Grill Guard

Type	1-Piece
Tubular	No
Finish	Satin Powder Coated
Color	Black
Material	Steel
Drilling Required	Yes
Hitch Type	Without Hitch
Maximum Gross Trailer Weight	Not Applicable
Maximum Tongue Weight	Not Applicable
With Grille Guard	No
With Grille Screen	No
With Bull Bar	No
With Winch Mount	Yes
Winch Compatible	Yes
Tow Hooks	Not Compatible With Tow Hooks
D-Rings	With D-Ring Mounts
With Light Cutouts	Yes
Light Type	30 Inch Light Bar/ Two Cube Lights - Sold Separately
With Mounting Hardware	Yes
With Skid Plate	No
With Spare Tire Mount	No
With License Plate Mount	No
With Jacking Points	Yes
With CB Antenna Mount	No
Estimated Install Time (Hours)	4



With Pre-Runner Guard

Sensor Compatible	Yes
Type	1-Piece
Tubular	No
Air Bag Compatible	Yes
Finish	Powder Coated
Color	Black
Material	Steel
Drilling Required	Yes
With Mounting Hardware	Yes
Hitch Type	Without Receiver
Maximum Gross Trailer Weight	Without Receiver
Maximum Tongue Weight	Without Receiver
With Grille Guard	No
With Grille Insert	No
With Bull Bar	Yes
With Winch Mount	Yes
Winch Compatible	Yes
Tow Hooks	Not Compatible With Tow Hooks
D-Rings	With D-Ring Mounts
With Light Cutouts	Yes
Light Type	30 Inch Light Bar/ Two Cube Lights - Sold Separately
With Skid Plate	No
With Spare Tire Mount	No
With License Plate Mount	No
With Jacking Points	Yes
With CB Antenna Mount	No
Estimated Install Time (Hours)	4



Installation Guide

2019-2025 RAM 1500
