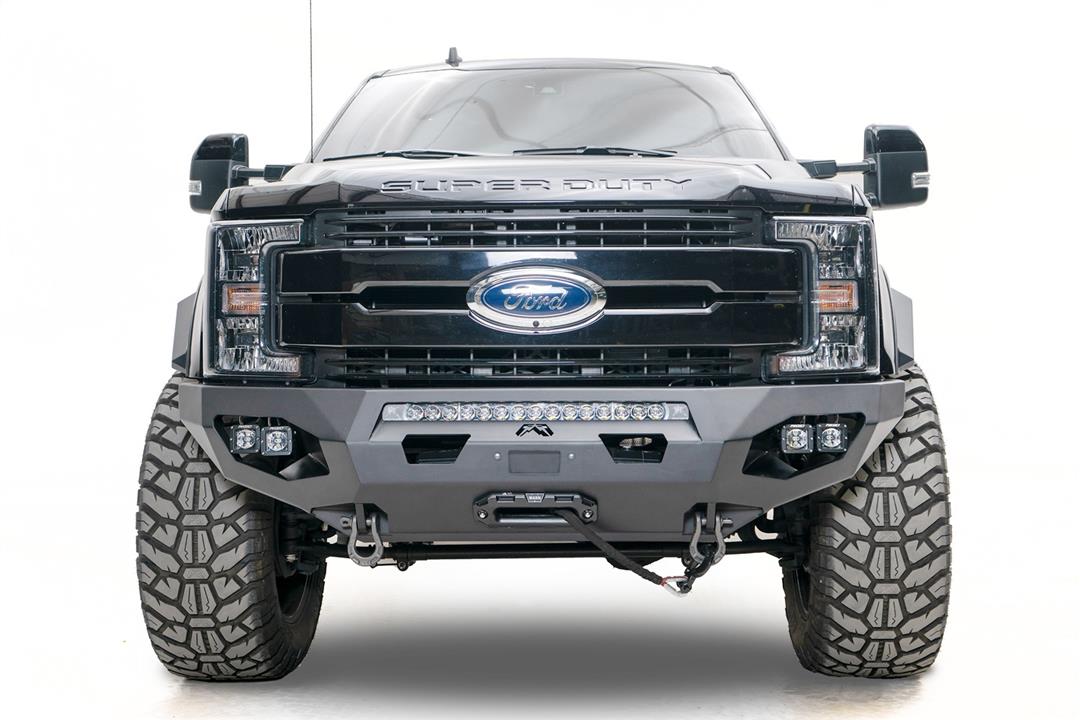

Fab Fours Matrix Front Bumpers For 2017-2022 Ford F-250/350

Equipped to hold a 30 Inch light bar and a 12,000 Pounds Winch, the Fab Fours Matrix Bumper Series gives you the peak of style and utility for your truck. This bumper is a combination of the best aspects of the Premium Winch Bumper and the Vengeance Bumper Series to give you the best slim fitting steel bumper in the truck game. If you are looking for one bumper that checks every box, look no further than the Matrix Series from Fab Fours.

Product Specifications

Without Grill Guard ACC Compatible

• Winch ready for Warn Zeon 12 or Lower. Bolt Pattern is 10″x4.5″. See below section of Relocation Kit Part Numbers.
• Center mount accommodates a single row 30″ light bar (not included). Double row can be used if not running a winch
• Accommodates factory 360° camera (2017-2023 models). Minor camera interference with Pre-runner and Full Grille Guard
• Side mounting slots and tabs will hold up to (4) 3″ X 3″ cube lights (lights not included). Flush Mounts will not work. Must use single bolt setup.
• Accommodates Adaptive Cruise Control.
• Standard Design Available in Full Guard / Pre-runner Guard/ No Guard options (Meets Factory Wheel Well)
• Slim “High and Tight” Design
• Removable light inserts for optimal customization
• Provides far more tire clearance.
• Integrated D-Ring Mounts
• Tremor packages that include factory winch are not compatible.

• Warn Relocation Kits: Winches

  89970 ZEON, Short Kit (31”)

  89960 ZEON, Long Kit (78”)

  89970 ZEON Platinum, Short Kit (31”)

  92193 ZEON Platinum, Long Kit (78”)

  106011 VR EVO, Long Kit (78”)

Type	1-Piece
Tubular	No
Air Bag Compatible	No
Finish	Powder Coated
Color	Black
Material	Steel
Drilling Required	No
With Mounting Hardware	Yes
Hitch Type	Without Receiver
Maximum Gross Trailer Weight	Without Receiver
Maximum Tongue Weight	Without Receiver
With Grille Guard	No
With Grille Insert	No
With Bull Bar	No
With Winch Mount	Yes
Winch Compatible	Yes
Tow Hooks	With Tow Hook Mounts
D-Rings	With D-Ring Mounts
With Light Cutouts	Yes
Light Type	30 Inch Light Bar/ Four Cube LED Lights - Sold Separately
With Skid Plate	No
With Spare Tire Mount	No
With License Plate Mount	No
With Jacking Points	Yes
With CB Antenna Mount	No
Estimated Install Time (Hours)	4

With Pre-Runner Guard ACC Compatible

• Winch ready for Warn Zeon 12 or Lower. Bolt Pattern is 10″x4.5″. See below section of Relocation Kit Part Numbers.
• Center mount accommodates a single row 30″ light bar (not included). Double row can be used if not running a winch
• Accommodates factory 360° camera: Minor camera interference with Pre-runner and Full Grille Guard
• Side mounting slots and tabs will hold up to (4) 3″ X 3″ cube lights (lights not included). Flush Mounts will not work. Must use single bolt setup.
• Accommodates Adaptive Cruise Control.
• Available in Full Guard / Pre-runner Guard/ No Guard options (Meets Factory Wheel Well)
• Slim “High and Tight” Design
• Removable light inserts for optimal customization
• Provides far more tire clearance.
• Integrated D-Ring Mounts
• Tremor packages that include factory winch are not compatible.
• Warn Relocation Kits: Winches: 89970 ZEON, Short Kit (31”)89960 ZEON, Long Kit (78”)89970 ZEON Platinum, Short Kit (31”)92193 ZEON Platinum, Long Kit (78”)106011 VR EVO, Long Kit (78”)

Type	1-Piece
Tubular	No
Air Bag Compatible	No
Finish	Powder Coated
Color	Black
Material	Steel
Drilling Required	No
With Mounting Hardware	Yes
Hitch Type	Without Receiver
Maximum Gross Trailer Weight	Without Receiver
Maximum Tongue Weight	Without Receiver
With Grille Guard	No
With Grille Insert	No
With Bull Bar	No
With Winch Mount	Yes
Winch Compatible	Yes
Tow Hooks	Not Compatible With Tow Hooks
D-Rings	With D-Ring Mounts
With Light Cutouts	Yes
Light Type	30 Inch Light Bar/ Four Cube LED Lights - Sold Separately
With Skid Plate	No
With Spare Tire Mount	No
With License Plate Mount	No
With Jacking Points	Yes
With CB Antenna Mount	No
Estimated Install Time (Hours)	4

With Full Grill Guard ACC Compatible

• Winch ready for Warn Zeon 12 or Lower. Bolt Pattern is 10″x4.5″. See below section of Relocation Kit Part Numbers.
• Center mount accommodates a single row 30″ light bar (not included). Double row can be used if not running a winch
• Accommodates factory 360° camera: Minor camera interference with Pre-runner and Full Grille Guard
• Side mounting slots and tabs will hold up to (4) 3″ X 3″ cube lights (lights not included). Flush Mounts will not work. Must use single bolt setup.
• Accommodates Adaptive Cruise Control.
